Mitsubishi Mini-Split Heat Pump – 9,000 BTU – Model MUZ-JX09WLH
- Price includes installation
- Free shipping within the GTA
Original price was: $3,500.00.$3,199.00Current price is: $3,199.00. + HST
Description

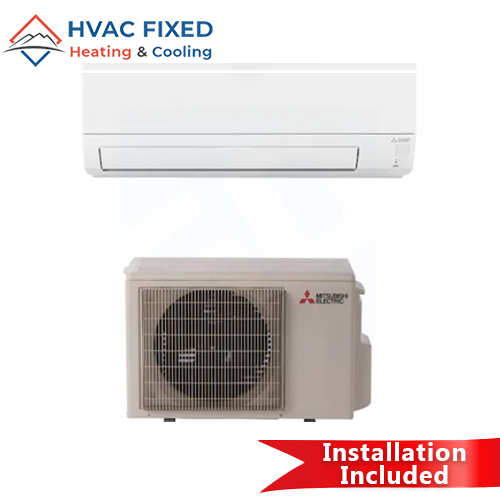

Mitsubishi Electric JX Series 9,000 BTU 115V Wall-Mounted Heat Pump System Powered by standard 115V electricity, the Mitsubishi Electric JX Series single-zone ductless heat pump system delivers efficient, year-round climate control for residential spaces between 350 and 450 square feet. This complete package includes the MSZ-JX09WL indoor wall-mounted unit, the MUZ-JX09WL outdoor condenser, and all essential components required for setup. Operating on 115V power eliminates the need for high-voltage panel upgrades, making installation fast and cost-effective.
Key Features & Performance
-
Capacity: 9,000 BTU Cooling (0.75 Ton) / 10,900 BTU Heating
-
High Efficiency: SEER2 rating of 20.0 and HSPF2 rating of 10.0 for low monthly utility bills
-
Advanced Inverter Technology: Features a variable-speed rotary compressor using next-generation R-454B refrigerant to maintain precise temperatures without noisy on/off cycling
-
Ultra-Quiet Operation: Indoor unit operates at sound levels as low as 19 dB(A)
-
Convenient Powering: Runs on standard 115V household power
HVAC Center Customer Benefits When you purchase from HVAC Center, your investment is backed by:
-
Flexible financing options ranging from 1 to 20 years
-
10-year parts warranty
-
5-year extended labor warranty
Related Documents
Product Specification
| Brand | Mitsubishi |
|---|---|
| Family | JX Series (115V Heat Pump) |
| Series | MUZ-JX09WL / MSZ-JX09WL |
| Nominal Cooling Capacity | 0.75 Ton (350-450 sqft) |
| Actual Cooling Capacity (BTU) | 9,000 BTU (Range: 3,600 – 11,000 BTU) |
| Actual Heating Capacity | 10,900 BTU Heating Capacity |
| Compressor Type | INVERTER-driven Single Rotary |
| SEER2 | 20.0 SEER2 |
| Liquid Line Size | 1/4 Inch |
| Suction Line Size | 3/8 Inch |
| Noise Level | 19 – 43 dB(A) Indoor / 50 dB(A) Outdoor |
| Refrigerant Type | R-454B |
| Electrical Specification | 115 VAC, 1 Phase, 60 Hz |
| Warranty on parts | 10-Years |
| Energy Star | Yes |
Manufacturer Warranty
After the installation is complete, you can complete the registration process through the manufacturer’s website using the product’s serial number. Alternatively, our team members are available to help you with the registration.
Warranty on Labour
Once the installation has been completed, you may finalize the registration through the manufacturer’s website by entering the product’s serial number. If needed, our support team will be happy to assist you with the process.
Free Shipping in the GTA
The service is provided at no cost, and customers within the GTA will not be charged any extra fees for the pickup or disposal of their old products.
We’re Available Across the GTA
After installing the new product, we will remove the old product from your home for free.
