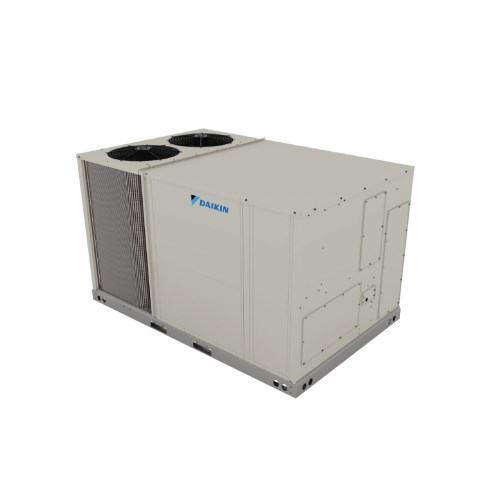

Daikin 7.5 Ton G/E 210,000 BTU/Hr Packaged Rooftop Unit | 208-230/3
$17,931.00
Description
The7.5T DBG0903SH00003C Gas/Electric 210MBTU Packaged Rooftop with 2 Speed High Static Belt Drive is Built to Perform with Features that Help Provide Low Installation and Operation Costs, Superior Indoor Quality, Efficient Operation and Longevity
Specifications
| Specification | Details |
|---|---|
| Brand | Daikin |
| Efficiency (AFUE) | 80% |
| Energy Efficiency Rating (EER) | 11 |
| Height (In.) | 54-1/4 |
| Length (In.) | 93-5/8 |
| Refrigerant | R410A |
| Weight (lbs) | 1095 |
| Width (In.) | 60.1875 |
| Manufacturer | Daikin |
| Nominal Cooling Capacity (Tons) | 7-1/2 |
| Blower Motor Design | 2 Speed High Static Belt Drive |
| Stages of Cooling | 2 Stage |
| Factory Installed Economizer | Not Included |
| AFUE Rating | 80% |
| Cabinet Material | Galvanized Steel |
| Compressor Design | Scroll |
| Cooling Capacity (Btu/Hr) | 90,000 |
| Entering Air Temperature (EAT) Dry Bulb | 80 F |
| Entering Air Temperature (EAT) Wet Bulb | 67 F |
| External Static Pressure (In. WC) | 0.8 |
| Flow Configuration | Downflow |
| Gas Heating Type | High Heating Range |
| Heating Capacity (Btu/Hr) | 210,000 |
| Hertz | 60 Hz |
| Integrated Energy Efficiency Ratio (IEER) Rating | 12.7 |
| Leaving Air Temperature (LAT) Dry Bulb | 61.2 F |
| Leaving Air Temperature (LAT) Wet Bulb | 58 F |
| Maximum Fuse Amps | 50.00/50.00A |
| Minimum Circuit Ampacity | 42.70/42.70A |
| Net Cooling Capacity (Btu/Hr) | 86,000 |
| Nominal Filter Size (In.) | (4) 20 X 25 X 2 |
| Options Included | Filter Drier, High Pressure Switch, Low Pressure Switch |
| Outdoor Design Temperature | 95 F |
| Sensible Cooling Capacity (Btu/Hr) | 61,920 |
| Total External Static Pressure (In. WC) | 0.87 |
| Voltage (V) | 208-230/3 |
