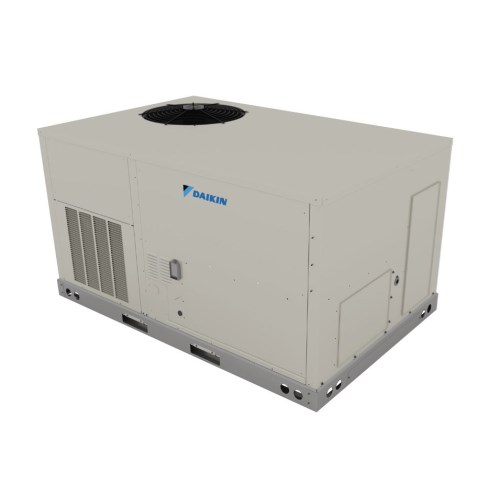

Daikin 3 Ton G/E 90,000 BTU/Hr Packaged Rooftop Unit | 208-230/1
- Price includes installation
- Free shipping within the GTA
$11,036.00 + HST
Next Day Installation
Free Shipping
Financing Available
Description
The 3T DBG0361DH00001S Gas/Electric 90MBTU Packaged Rooftop with Standard Static Belt Drive is Built to Perform with Features that Help Provide Low Installation and Operation Costs, Superior Indoor Quality, Efficient Operation and Longevity.
Specifications
| Specification | Value |
|---|---|
| Brand | Daikin |
| Efficiency (AFUE) | 81% |
| Energy Efficiency Rating (EER) | 11-1/2 |
| Height (In.) | 39-7/8 |
| Length (In.) | 74 |
| Refrigerant | R410A |
| Weight (lbs) | 573, 615 |
| Width (In.) | 48-5/16 |
| Manufacturer | Daikin |
| Nominal Cooling Capacity (Tons) | 3 |
| Blower Motor Design | Standard Static Direct Drive |
| Stages of Cooling | 1 Stage |
| Factory Installed Economizer | Not Included |
| AFUE Rating | 81% |
| Blower Motor Full Load Amps | 5.70A |
| Cabinet Material | Galvanized Steel |
| Compressor Design | Scroll |
| Compressor Locked Rotor Amps | 79.00A |
| Compressor Rated Load Amps | 16.70A |
| Cooling Capacity (Btu/Hr) | 36,000 |
| Drain Connection (In.) | 3/4 NPT |
| Energy Efficiency Rating (SEER) | 14 |
| Entering Air Temperature (EAT) Dry Bulb | 80 F |
| Entering Air Temperature (EAT) Wet Bulb | 67 F |
| External Static Pressure (In. WC) | 1/2 |
| Fan Motor Full Load Amps | 0.95A |
| Fan Motor Horsepower Rating | 1/5 |
| Fan Motor Quantity | 1 |
| Fan Motor RPM | 810 |
| Flow Configuration | Downflow |
| Gas Heating Type | High Heating Range |
| Gas Valve Type | 2 Stage |
| Heating Capacity (Btu/Hr) | 90,000 |
| Hertz | 60 Hz |
| Leaving Air Temperature (LAT) Dry Bulb | 62.1 F |
| Leaving Air Temperature (LAT) Wet Bulb | 59.1 F |
| Maximum Fuse Amps | 40.00/40.00A |
| Minimum Circuit Ampacity | 27.50/27.50A |
| Motor Horsepower | 3/4 |
| Net Cooling Capacity (Btu/Hr) | 35,300 |
| Nominal Filter Size (In.) | (2) 20 X 25 X 2 |
| Options Included | Filter Drier, High Pressure Switch, Low Pressure Switch |
| Outdoor Design Temperature | 95 F |
| Sensible Cooling Capacity (Btu/Hr) | 27,534 |
| Total External Static Pressure (In. WC) | 0.55 |
| Voltage (V) | 208-230/1 |
